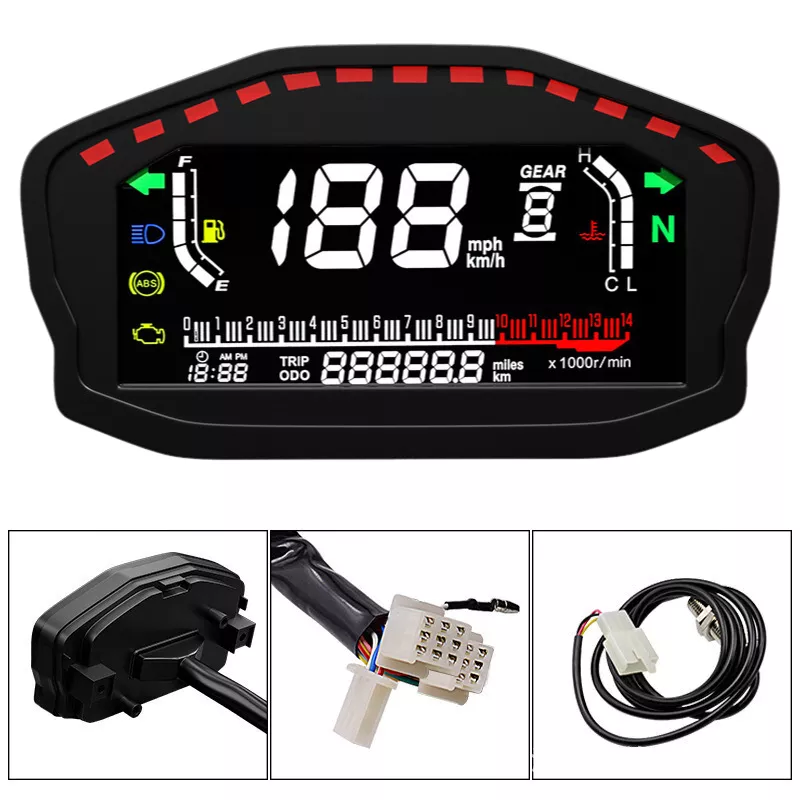

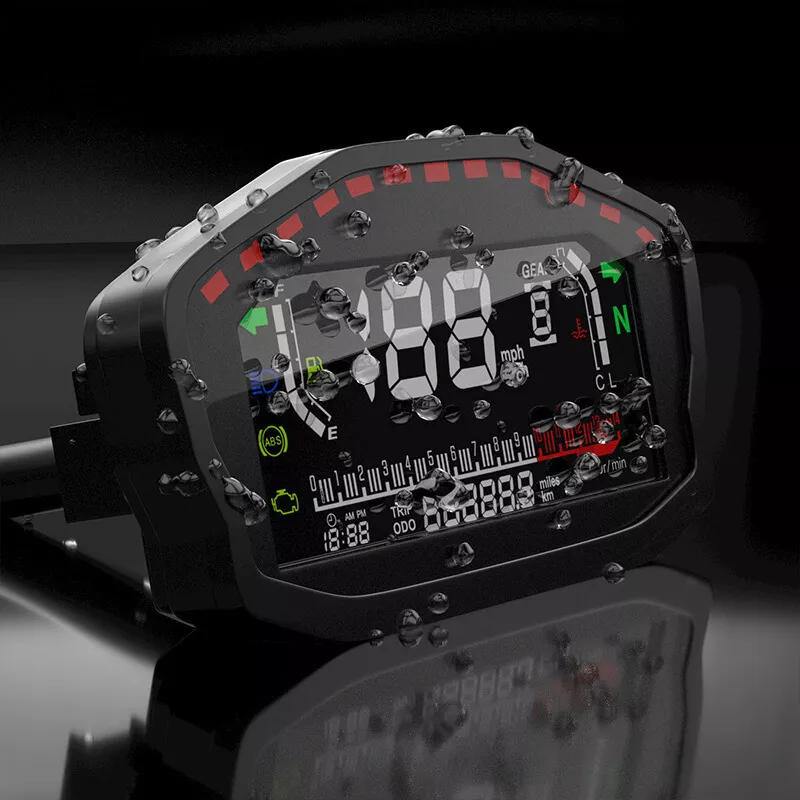

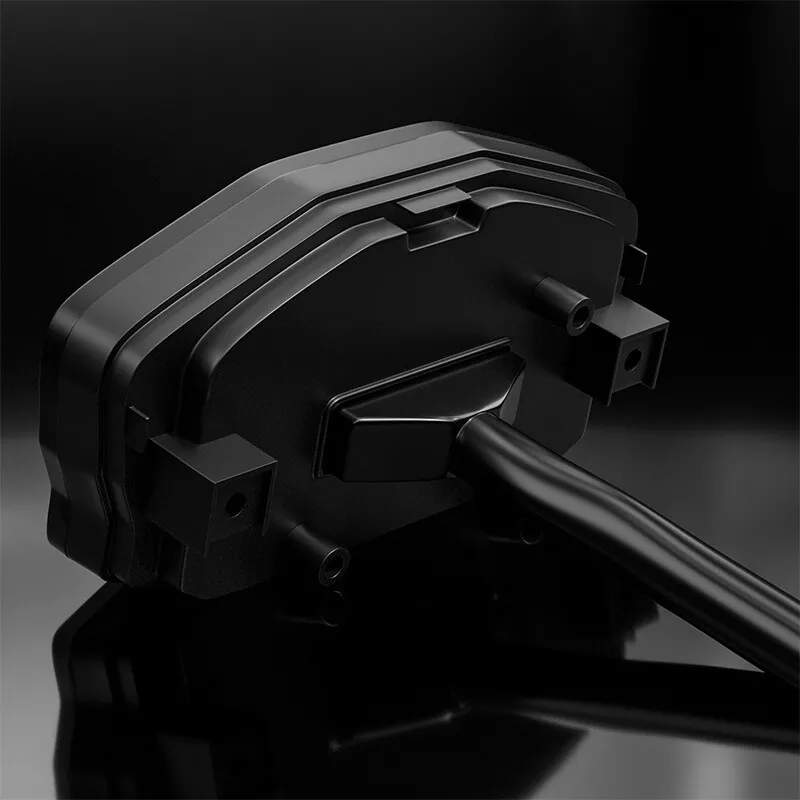

Smart Motorcycle Digital Instrument Cluster with Speed RPM Fuel Display-AM48

Details

Power and Display Management

Power Requirements

This system operates on a stable DC12V power source, consuming less than 4mA in standby mode, making it efficient and compatible with motorcycle power systems. The minimal draw extends battery life, supporting long-term reliability and consistent performance.

Backlight

The LCD backlight uses adaptive brightness, with default white illumination reduced to 38% brightness when high beams are activated. This feature enhances night riding visibility without overwhelming the rider’s view, balancing display clarity with safety in low-light conditions.

Clock Adjustment

The clock is displayed in a 12-hour format, automatically set to AM10:00 during a cold start. Adjustments are simple, with options for hour and minute changes. A 10-second auto-save feature prevents data loss, making timekeeping convenient for riders.

Measurement and Monitoring Instruments

Speedometer

Calibrated for accuracy, this LCD speedometer reads a 1.85m tire circumference, using four magnets per rotation. A frequency of 36Hz displays speeds of 63 km/h, with a moving signal light indicating real-time movement, ensuring precise speed tracking for enhanced rider awareness.

Tachometer

Engine RPMs are monitored through an LCD that displays a frequency of 166Hz for 10,000 RPM, ensuring accurate readings across speeds. This performance metric allows riders to gauge engine load, contributing to efficient riding practices and optimized motorcycle operation.

Fuel Gauge

The LCD fuel gauge connects to a fuel sensor and visually represents fuel levels, from empty to full, with distinct block indicators and blinking warnings for low levels. The intuitive design aids in fuel management, preventing unexpected depletion during rides.

Water Temperature Gauge

The temperature gauge displays real-time water temperature with segmented blocks and flashing symbols when high. Connected to a sensor, it provides accurate temperature tracking, helping riders maintain safe operating levels and prevent engine overheating.

Warning and Indicator Systems

Low Voltage Warning

Although lacking a dedicated low voltage indicator, this system provides indirect monitoring through other display features. This approach ensures that power inconsistencies do not go unnoticed, indirectly enhancing the overall electrical stability and safety of the motorcycle.

Oil Warning

The oil level warning activates when levels drop critically low and can be reset by pressing a button, reinitializing monitoring. This feature promotes timely maintenance, reducing the risk of engine wear due to inadequate lubrication, thus extending engine life.

Signal Indicators

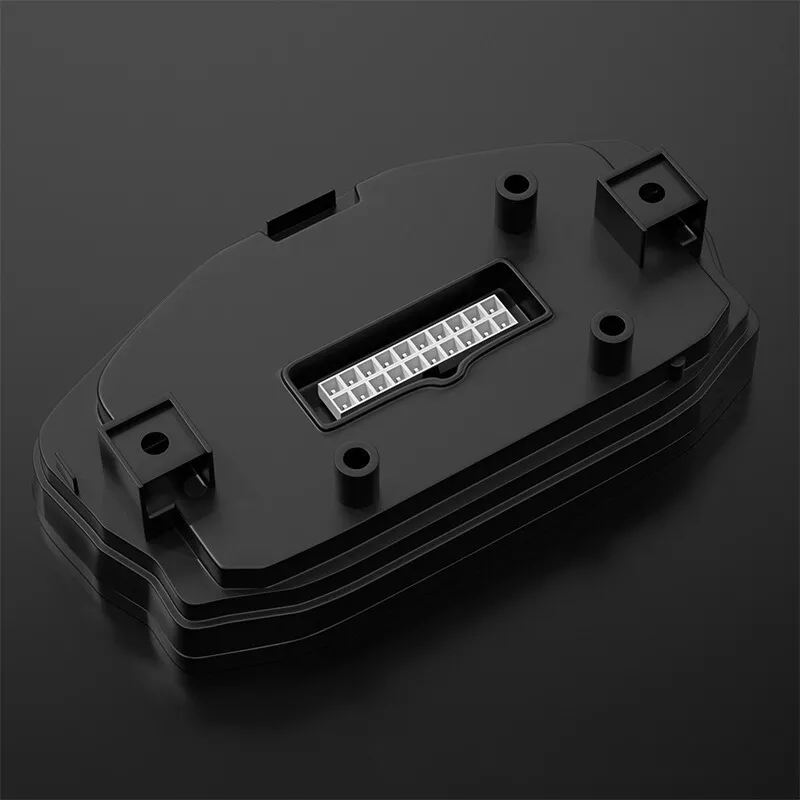

Color-coded wires connect to signals like turn indicators, high beams, and gear positions, all displayed on the LCD. This organized system ensures clear and instant visual feedback, allowing riders to stay informed of their motorcycle’s state without distraction.

User Control and Customization

Button Functions

Multi-functional buttons support toggling between the odometer and trip readings, unit conversions (metric/imperial), trip resets, and clock adjustments. These intuitive controls make it easy for riders to access relevant information and make adjustments on the go, enhancing usability.

Calibration and Advanced Settings

Settings include tire circumference adjustment, magnet count, cylinder count, fuel gauge line configuration, and unit system selection. Customizable features enable precise calibration, allowing riders to tailor settings to their motorcycle's specifications for optimized performance and accuracy.
